Zapp n’ Trap 6000

$3,995.00

The Zapp n’ Trap 6000 is a source capturing system that combines The Particle Trap®6000 and the ZappPLUS Ionizing Nozzle. The ZappPLUS Ionizing Nozzle is a hands-free blow-off nozzle that allows the operator the flexibility to move and maneuver the nozzle into their ideal location for spot-on, high-impact cleaning. Once the products are cleaned – Where do the particles go? They are captured in The Particle Trap®6000. The Particle Trap®6000 uses a filtration system that includes both a Pre-Filter and a HEPA Filter to trap particles using negative pressure which in turn permanent removes particles or contaminants from your environment or cleanroom.

Description

The Zapp n’ Trap 6000 is a source capturing system that combines The Particle Trap®6000 and the ZappPLUS Ionizing Nozzle. The ZappPLUS Ionizing Nozzle is a hands-free blow-off nozzle that allows the operator the flexibility to move and maneuver the nozzle into their ideal location for spot-on, high-impact cleaning. Once the products are cleaned – Where do the particles go? They are captured in The Particle Trap®6000. The Particle Trap®6000 uses a filtration system that includes both a Pre-Filter and a HEPA Filter to trap particles using negative pressure which in turn permanent removes particles or contaminants from your environment or cleanroom.

Zapp n’ Trap 6000 with PT6000, ZappPLUS, Controller, Sensor & Filter; Includes:

  • Qty 1; SHOZII-CB-TRTV6 ZappAURA Controller with Timer, Power Supply, Patch Cord, Needle Valve & 6mm Air Tube; fuw Sensor Eye
  • Qty 1; ZappAURA Ionizer Main Body
  • Qty 1; ANS ZappAURA Standard Black Teflon Nozzle
  • Qty 1; SHZAPP-SE Sensor Eye for ZappAURA Ionizer; fuw

SHOZII-CB-TR (TV6) Controller

  • Qty 1; SHZAPP-SEC Sensor Eye Cordset only; fuw ZappAURA Ionizer Controller and Sensor Eye
  • Qty 1; GN18CLMP Gooseneck, 19.63 Inch, Black, Clamp Base; fuw

ZappAURA Ionizer

  • Qty 1;6 inches; 790-0014 Spiral Bundling Wrap-Around Sleeving, 3/4″ OD Black Polyethylene
  • Qty 6 feet; 6mm OD x 4mm ID Black Urethane Air Tube (controller – house air)
  • Qty 1; HWAFSTR14MNPT06AT Air Fitting, UniFit, 1/4″ NPTF Male to 6mm Tube, Brass
  • Qty 1; ASFRG14C Compressed Air System, Mini Filter/Regulator & gauge w/0.01 micron coalescing filter

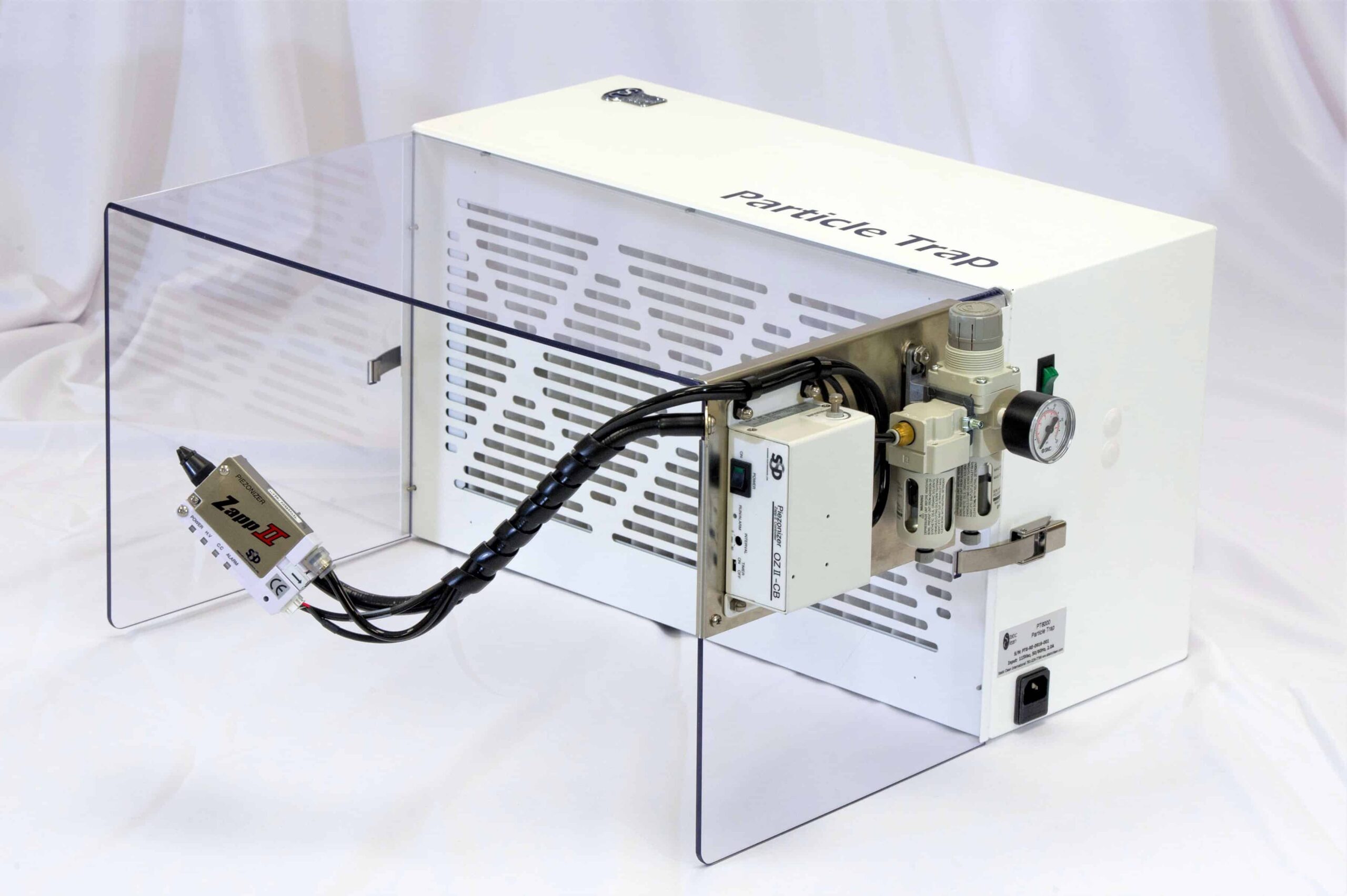

Please Note: Power Controller and Filter/regulator combination mounted in a neat package to a stainless-steel plate on the side of the lexan hood.

  • Qty 1; PARTICLE TRAP 6000 w/ (1) CLEAR POLYCARBONATE
    HOOD, 21″W X 12″ H X 11″D; (1) MEDICAL GRADE PREFILTER, (1)
    HEPA FILTER, (1) 115V US POWER CORD, MANUAL, C OF C
